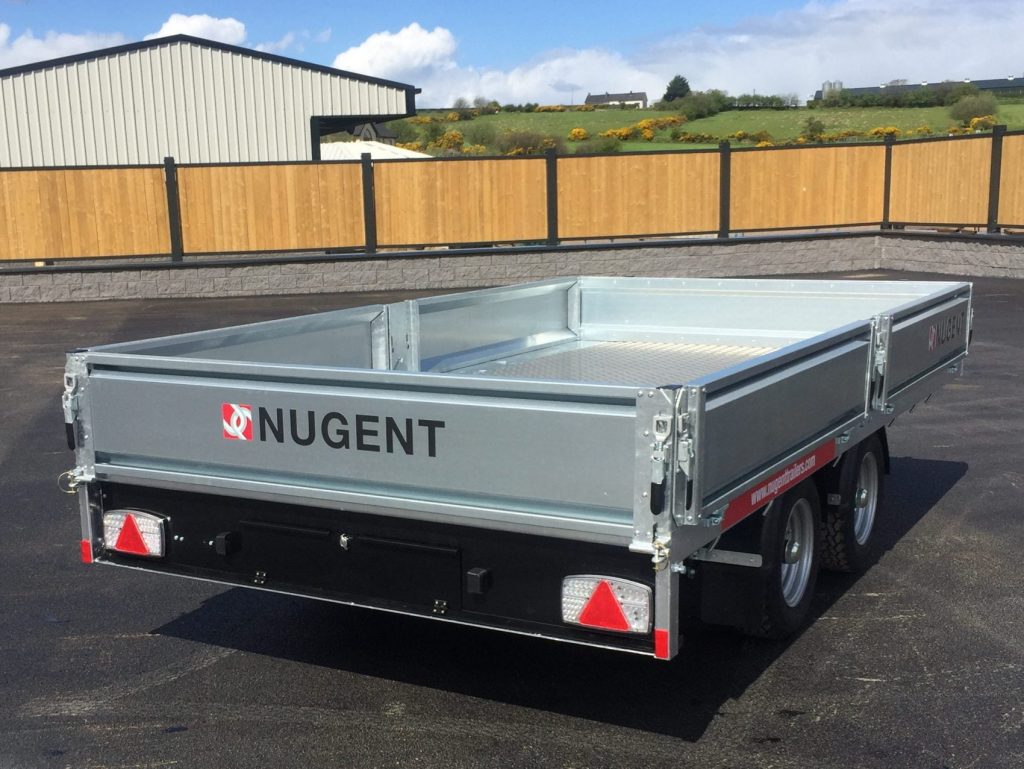

Nugent Flatbed Trailer

Nugent flatbed trailer for sale at Thurlow Nunn Standen

Nugent Flatbed Trailer

Prices from:  £4,500 ex. vat or £5,400 inc. vat

Please wait while we check stock availability for you.

£5,400.00 – £6,900.00

Click & Collect

Click & Collect is available free from our five branches across East Anglia

Category: Nugent Trailers

Stock Number: N/A

Share

The Nugent Flatbed Trailer range is designed and manufactured for the commercial trailer world. With full type approval (ECWVTA), they have been engineered in the Nugent tradition of strength, functionality and longevity; providing a robust and versatile solution for industries that demand constant use.

Nugent’s patented Dual Drive™ suspension is standard across the range, enhancing the towing experience, bringing trailer suspension to new levels. Nugent’s tradition of robust fabricated chassis design has further evolved with the introduction of new materials and innovative design features, combined with a policy of incorporating market leading components to ensure Nugent remains the professionals choice.

The Flatbed trailer range is available with maximum gross weight up to 3,500kg and sizes from 2.5 metres to 5.5 metres, guaranteeing a suitable model for every application. The standard design includes many desirable features and is complimented with a range of optional extras if further customization is required.

Standard Features

  • Spare Wheel
  • Fully welded chassis including spring hangers
  • Lockable ramp flap
  • Dual Drive Parabolic Equalizers
  • 18mm birch plywood resin floor
  • LED Lights
  • Internal retractable load lashing points
  • Market leading Knott braking system
  • Silent sides with spring loaded latches (drop sides)
  • Easy glide hinges (drop sides)
  • Double folded drop sides
  • Lockable hitch

Optional Extras

  • Drop sides
  • Aluminium Floor
  • Ladder rack
  • Aluminium or steel skids
  • Prop stands
  • Full ramp door inc props
  • High mesh sides
  • Lockable toolbox
  • Manual or electric winches

DELIVERY

You can click & collect this trailer free of charge from your nearest TNS branch or delivery can be arranged at an additional charge.

For any questions regarding your heavy goods order, please contact [email protected] or call 01353 863038

Technical Data

MODEL AXLES TYRES GROSS WEIGHT UNLADEN WEIGHT INTERNAL LxW (mm) INTERNAL LxW (feet) OVERALL LxW (mm) DROP SIDE KIT WEIGHT DROP SIDE HEIGHT (mm) BED HEIGHT (mm) LASHING POINTS (pair)
F2517S 2 195/50R13 2,700kg 480kg 2,500 x 1,700 8’ 2” x 5’ 7” 3,898 x 1,790 90kg 366 640 2
F3117S 2 195/50R13 2,700kg 565kg 3,100 x 1,700 10’ 2” x 5’ 7” 4,498 x 1,790 100kg 366 640 3
F3117H 2 195/50R13 3,500kg 580kg 3,100 x 1,700 10’ 2” x 5’ 7” 4,498 x 1,790 100kg 366 640 3
F3120H 2 185/70R13 3,500kg 665kg 3,100 x 2,000 10’ 2” x 6’ 7” 4,436 x 2,090 105kg 366 680 3
F3717H 2 195/50R13 3,500kg 680kg 3,700 x 1,700 12’ 2” x 5’ 7” 5,036 x 1,790 110kg 366 640 4
F3720H 2 185/70R13 3,500kg 700kg 3,700 x 2,000 12’ 2” x 6’ 7” 5,036 x 2,090 115kg 366 680 4
F4320H 2 185/70R13 3,500kg 755kg 4,300 x 2,000 14’ 1” x 6’ 7” 5,636 x 2,090 136kg 366 680 4
F4320T 3 185/70R13 3,500kg 870kg 4,300 x 2,000 14’ 1” x 6’ 7” 5,636 x 2,090 136kg 366 680 4
F4920H 2 185/70R13 3,500kg 785kg 4,900 x 2,000 16’ 1” x 6’ 7” 6,236 x 2,090 144kg 366 680 5
F4920T 3 185/70R13 3,500kg 900kg 4,900 x 2,000 16’ 1” x 6’ 7” 6,236 x 2,090 144kg 366 680 5
F4923H 2 185/70R13 3,500kg 860kg 4,900 x 2,256 16’ 1” x 7’ 5” 6,236 x 2,390 150kg 366 680 5
F4923T 3 185/70R13 3,500kg 990kg 4,900 x 2,256 16’ 1” x 7’ 5” 6,236 x 2,390 150kg 366 680 5
F5520T 3 185/70R13 3,500kg 930kg 5,500 x 2,000 18’ 1” x 6’ 7” 6,836 x 2,090 152kg 366 680 6
F5523H 2 185/70R13 3,500kg 925kg 5,500 x 2,256 18’ 1” x 7’ 5” 6,836 x 2,390 158kg 366 680 6
F5523T 3 185/70R13 3,500kg 1050kg 5,500 x 2,256 6 18’ 1” x 7’ 5” 6,836 x 2,390 158kg 366 680 6
The internal length will decrease by 40mm and the internal width will decrease by 60mm when dropsides are added.
The above specifications are approximate as Nugent products are under continuous development, so there may be changes and adjustments
